SPECIFICATION
OVERVIEW

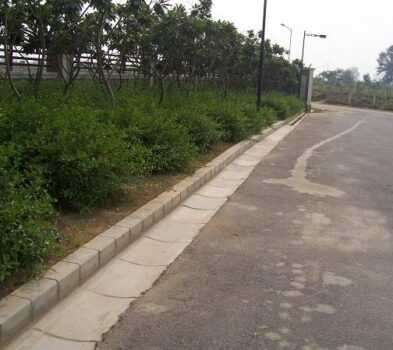

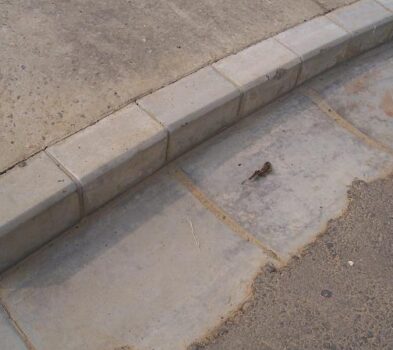

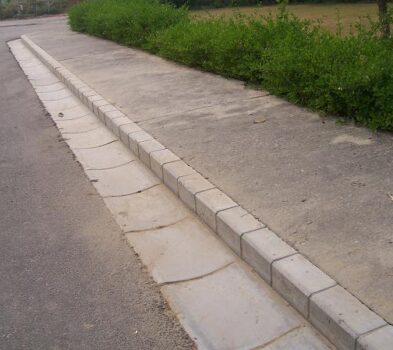

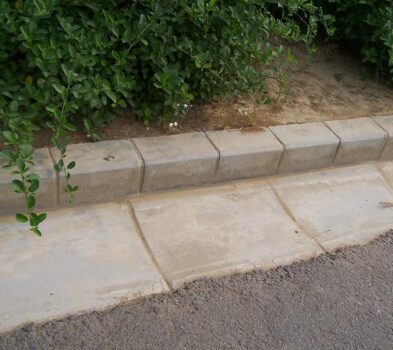

Saucer drains provide a means to collect water overflows or storm water in pedestrian areas, malls, parking lots, etc. They also come with holes to allow the collected water to be discharged into a another drainage system. KK manufactures saucer drains ranging in width from 450mm to 600mm.
FEATURES
- Can be solid or perforated
- Manufactured by M-30 grade of concrete by vibro compaction process using joint less FRP moulds so as to achieve shuttering finish.
- Perforated saucer drains are reinforced, while the plain ones can be reinforced on request
AVAILABLE SIZES
| Product Code | Nominal Size | Length | Width | Thickness |
| SD01 | 300x450x75/100 | 300 | 450 | 75/100 |
| SD02 | 600x450x75/100 | 600 | 450 | 75/100 |
| SD03 | 450x600x75/100 | 450 | 600 | 75/100 |
| SD04 | 300x300x70/100 | 300 | 300 | 70/100 |
| SD05 | 600x300x75/100 | 600 | 300 | 75/100 |
| SD06 | 900x300x75/100 | 900 | 300 | 75/100 |
| SD07 | 900x300x50/75 | 900 | 300 | 50/75 |
