SPECIFICATION
OVERVIEW

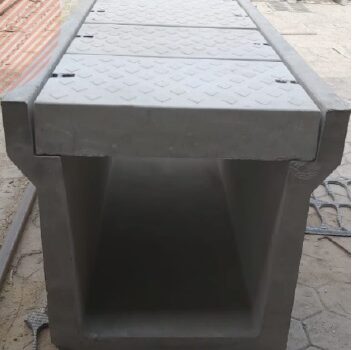

Precast concrete U drains allow for speedier construction of channels with minimum wet cast concrete work. KK manufactures a full range of U shaped drains. These drains range in widths from 200 mm to 900 mm. They are produced in strict factory controlled conditions that ensure high quality. Besides storm water drainage, these types of drains are also used to house underground cables and waterlines in industrial setup.
FEATURES- Manufactured with M – 40 grade of high performance self compacting concrete
- Suitably reinforced to promote long life
- For Jointing, it is recommended to fill the joint between two adjacent drains with cement mortar
- The drain should be laid on a properly compacted base
- Heavier drains are provided with lifting nuts
AVAILABLE SIZESProduct Code Nominal Size Width Depth Length Thickness DR01 300x300x500 300 300 500 50 DR02 300x375x500 300 375 500 50 DR03 300x450x500 300 450 500 50 DR04 355x315x610 355/340 315 610 60/65 DR05 585x310x610 585/610 310 610 50/70 DR06 705x355x475 705/675 355 475 57/80 DR07 890x300x500 890/855 300 500 110/80 DR08 760x800x2000 760 800 2000 Variable DR09 580x450x2000 580 450 2000 Variable DR10 450x450x2000 450 450 2000 Variable DR11 600x600x2000 600 600 2000 Variable DR12 450x600x2000 450 600 2000 Variable DR13 600x600x2000 600 600 2000 Variable DR14 900x900x2000 900 900 2000 Variable
